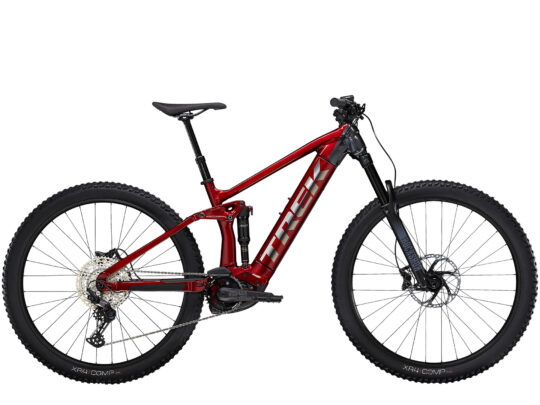

Trek Rail 5 625W Gen 2 29″ 2023 E-Bike Enduro Bike


The Rail 5 625 is an e-mountain bike for rough things. It comes with the same high-end features as our non-electric trail bikes, but is pushed forward by the new powerful Bosch drive system.

Frame Size (M)
Suspension fork RockShox 35 Gold RL 160mm
Shock RockShox Deluxe Select+ 150mm
Rear derailleur Shimano Deore M6100 / 12 speed
Tyres Bontrager XR4 Comp, wire bead, 30 tpi, 29×2.60
Brakes Shimano M4100 (203 / 203mm)
Engine Bosch Performance CX4
Display Bosch Purion
Battery 625Wh PowerTube
Charger 2A charger

Weight  23.90 kg (with hoses)

We accept good quality used bikes in part exchange

Cycle to work approved supplier


Categories: ,


Brand Trek
Gender Male, Unisex
Material Aluminium
Product type Full suspension
Speed 12fach
Brake disk size 200
Gears 12
Wheel size 29
Fork travel 160
Motor Bosch Performance CX Gen4
Motor power 250
Battery capacity Wh 625
Frame Alpha Platinum Aluminum, Removable Integrated Battery (RIB), Tapered head tube, Control Freak internal routing, Magnesium rocker link, Motor Armor, Mino Link, ABP, Boost148
Fork RockShox 35 Gold RL, DebonAir spring, Motion Control damper, lockout, tapered steerer, 44mm offset, E-MTB oversized crown, Boost110, 15mm Maxle Stealth axle, 160mm travel
Bike colour Dark-Red | Crimson/Lithium Grey
Shock RockShox Deluxe Select+, 230 x 57.5 mm
Stem Bontrager Rhythm Comp, Knock Block, 31.8mm, 0 deg, 50mm length
Handlebar Bontrager alloy, 31.8mm, 15mm rise, 750mm width
Grips Bontrager XR Trail Comp, Nylonklemme
Rear Derailleur Shimano Deore M6100, long cage
Cassette Shimano Deore M6100, 10-51 Z., 12fach
chain Shimano Deore M6100
Trigger shifter Shimano Deore M6100, 12-fach
Brake system Shimano MT420, hydraulic disc brake, 4-piston
Crankset E*thirteen E*spec Plus, 34T, 165mm crank arm length
Wheel set Alex MD35, suitable for tubeless, 32 holes, 35 mm inner width, Presta valve
Front tire Bontrager XR4 Comp, wire bead, 30 TPI, 29×2.60
Rear tire Bontrager XR4 Comp, wire bead, 30 TPI, 29×2.60
Seat Bontrager Arvada, steel stays, 138mm width
Seat post TranzX JD-YSP18, 130mm travel, internal routing, 31.6mm, 425mm length
Pedals Included.VP-536, nylon platform
